The

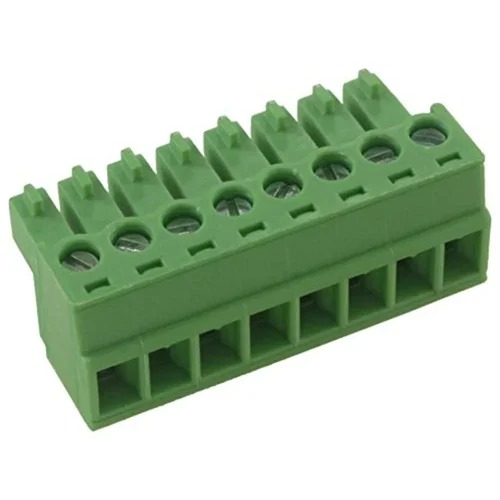

15EDGK plug-in terminal block is designed for dependable electrical connections with a
3.81mm pitch. It supports a
rated current of 8A and
voltage up to 300V, accommodating
wire gauges from 28–16 AWG for versatile use in low-power applications. Its
compact structure,
secure clamping design, and
robust construction make it an excellent choice for
PCB connections, control panels, and industrial automation systems.
| Attribute |
Value |
| Rated Voltage/Current |
300V / 8A |
| Wire Gauge |
28–16 AWG |
| Material |
Plastic: PA66
Clamp: C5191 Phosphor Bronze, Nickel-Plated
Screw: C1018 Steel, Blue-White Zinc Plated
Cage Square: C3604 Copper, Nickel-Plated |
| Number of Pins |
2–24P
(Please send a request for the specific number of pins.) |
Country Of Origin:China
-
