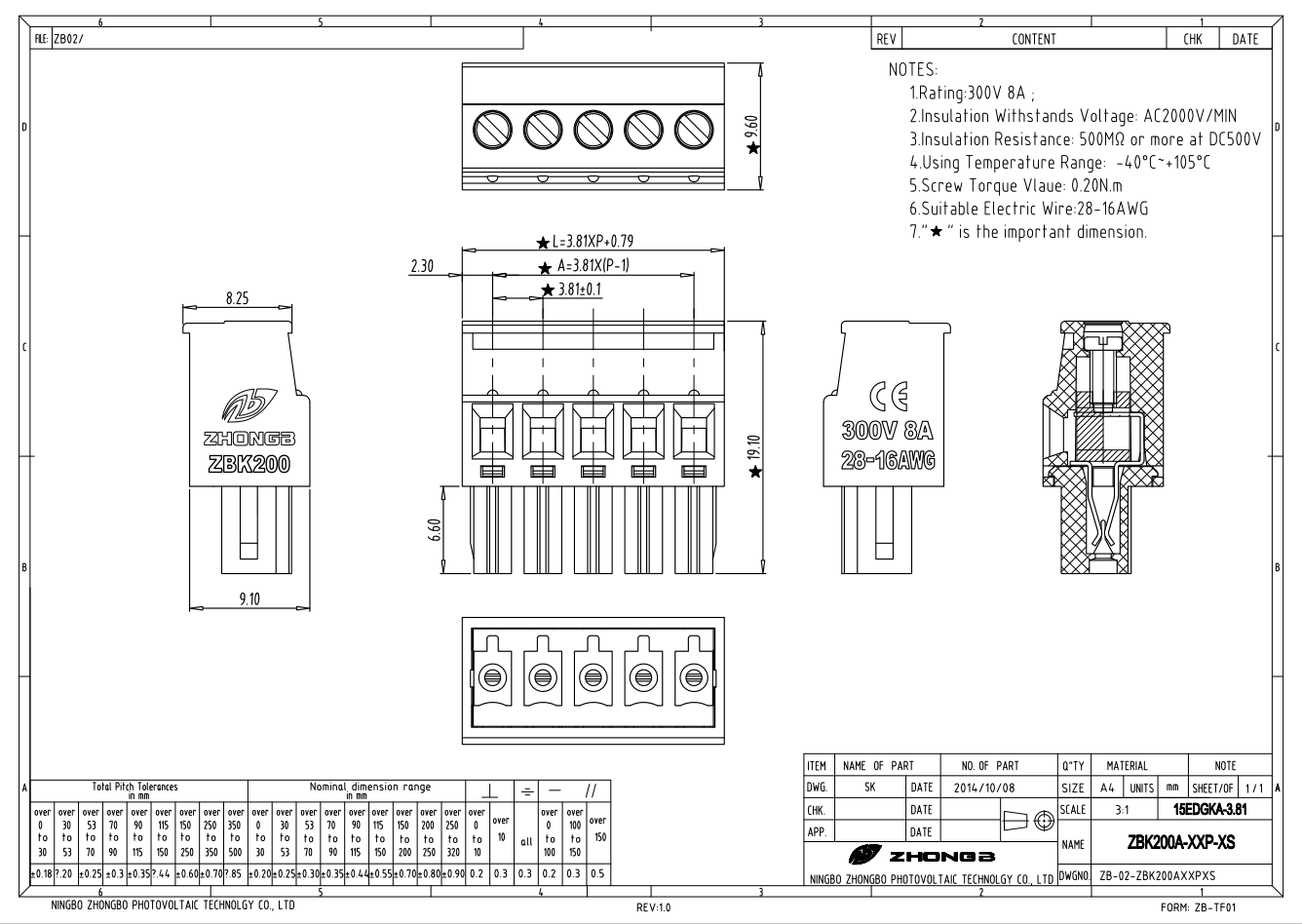

The 15EDGKA plug-in terminal block is engineered with a 3.81mm pitch to deliver stable and reliable electrical connectivity. It supports a rated current of 8A and voltage of 300V, and is compatible with wire sizes ranging from 28–16 AWG, making it suitable for various low-power applications. Its compact build, strong clamping mechanism, and robust materials make it an excellent choice for PCB interfaces, control panels, and industrial automation equipment.
| Attribute |
Value |
| Rated Voltage/Current |
300V / 8A |
| Wire Gauge |
28–16 AWG |
| Material |
Plastic: PA66
Clamp: C5191 Phosphor Bronze, Nickel-Plated
Screw: C1018 Steel, Blue-White Zinc Plated
Cage Square: C3604 Copper, Nickel-Plated |
| Number of Pins |
2–24P
(Please send a request for the specific number of pins.) |
Country Of Origin:China
-
