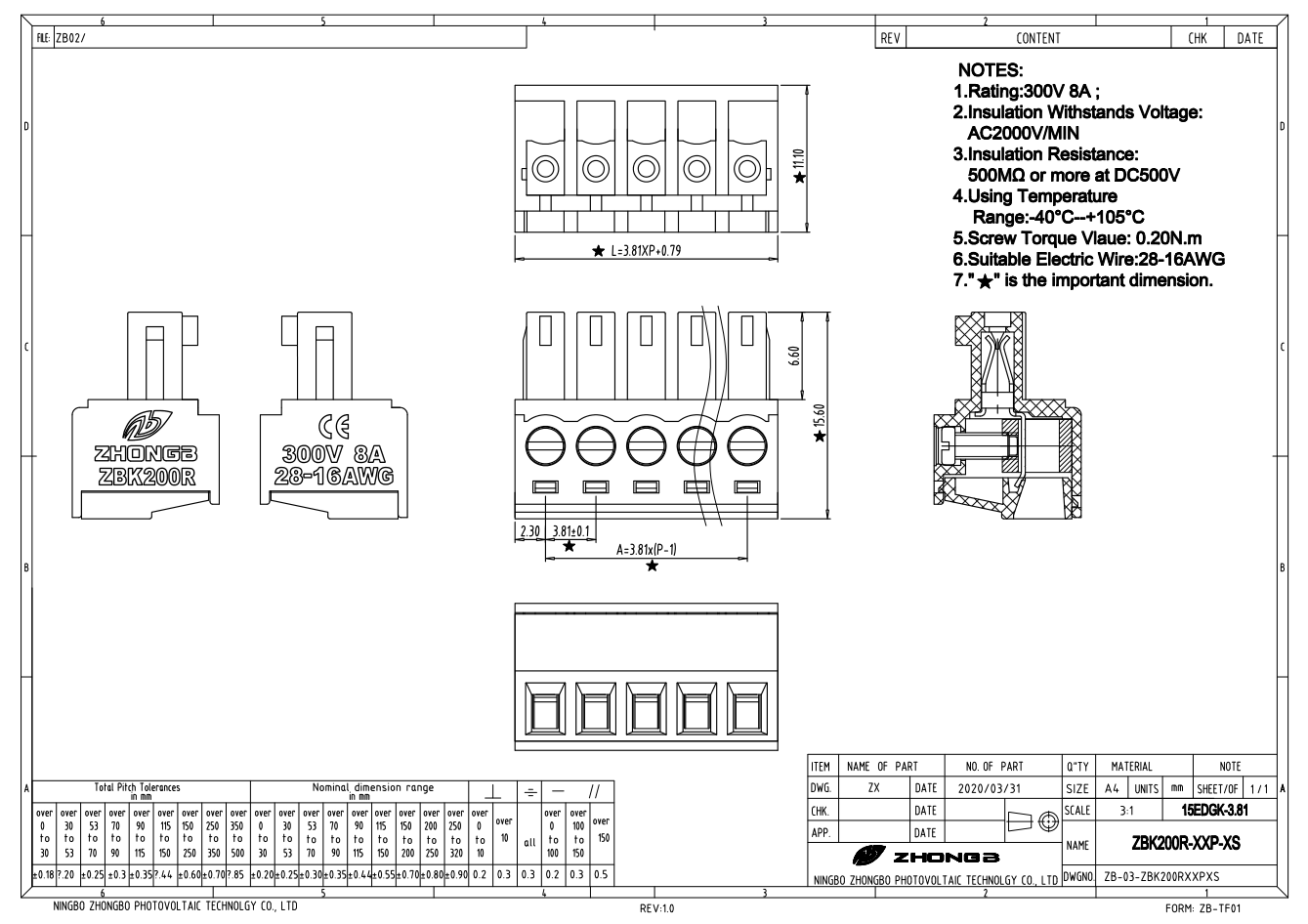

The 15EDGK plug-in terminal block is built for dependable electrical connections with a compact 3.81mm pitch. It handles up to 8A at 300V and supports wire sizes from 28 to 16 AWG, offering flexibility for various low-power applications. Its sturdy construction, secure clamping system, and space-saving design make it well-suited for PCB wiring, control panels, and industrial automation setups.
| Attribute |
Value |
| Rated Voltage/Current |
300V / 8A |
| Wire Gauge |
28–16 AWG |
| Material |
Plastic: PA66
Clamp: C5191 Phosphor Bronze, Nickel-Plated
Screw: C1018 Steel, Blue-White Zinc Plated
Cage Square: C3604 Copper, Nickel-Plated |
| Number of Pins |
2–24P
(Please send a request for the specific number of pins.) |
Country Of Origin:China
-
